*Model: TPV-DL30WB
* Epistar/CREE/Bridgelux Optional
*LM/W: 100LM/W
*Dimmable: Optional
*CRI: ≥80
*WW/NW/CM are available
*Lifud Driver
* 3 Years Warranty
*Diameter: Φ230mm
*Cut-out: 190mm
*Material: Aluminum alloy
*Input voltage: AC100-240V

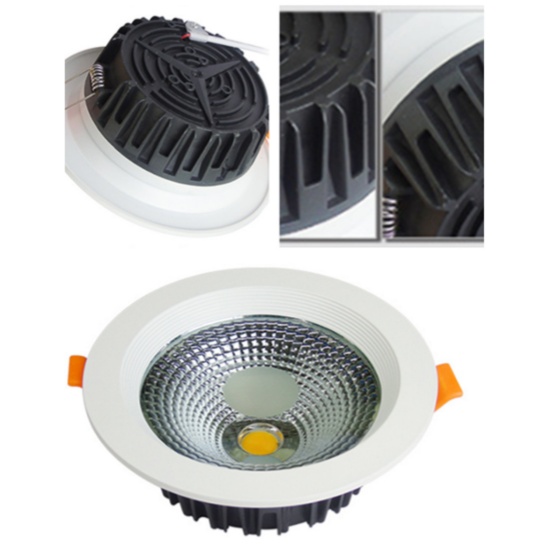

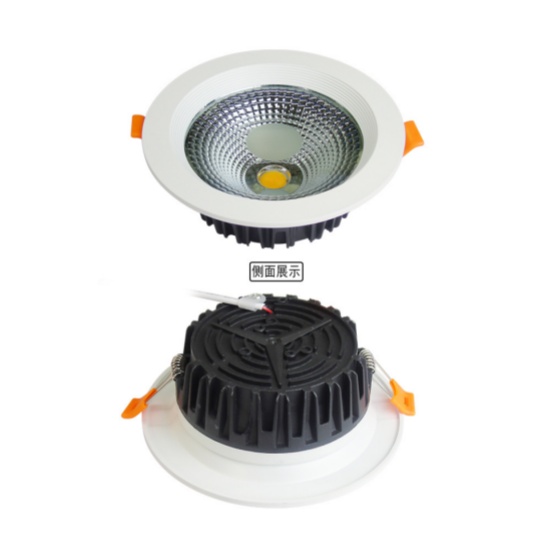

LED Downlight :
*5CCT-selectable: choose between 2700K/3000K/3500K/4000K/5000K
*Wattage selectabe: choose from 5W to 30W
*High CRI: RA> 80+ for true color rendering
*Replacable lens:15°, 24° 36° 60° four options
*Wet location rated
*Optional Driver: 0-10V Dimmable/Triac Dimmable

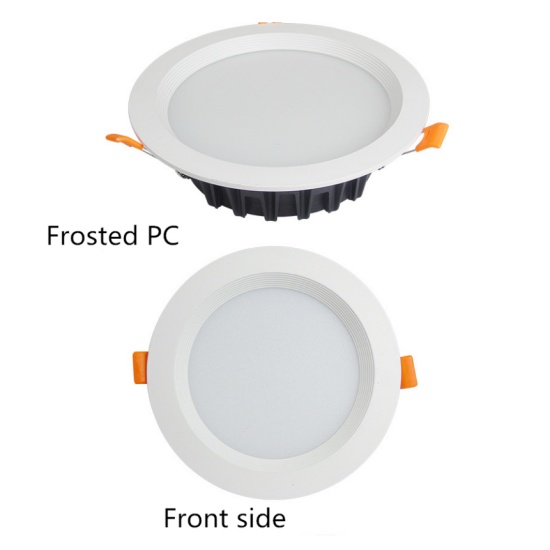

*PC cover: clear pc and frosted PC optional.
*SMD / COB: Optional
All available size and powers:
| Model | Power | Voltage | Size(MM) | Hole size | Lumen | Beam angle | CIR |
| TPV-DL5WB | 5W | AC85-265V | ¢106MM | 80MM | 100LM/W | 60/110° | 80Ra/90Ra |
| TPV-DL7WB | 7W | AC85-265V | ¢115MM | 90MM | 100LM/W | 60/110° | 80Ra/90Ra |
| TPV-DL12WB | 12W | AC85-265V | ¢143MM | 110MM | 100LM/W | 60/110° | 80Ra/90Ra |
| TPV-DL15WB | 15W | AC85-265V | ¢180MM | 145MM | 100LM/W | 60/110° | 80Ra/90Ra |
| TPV-DL20WB | 20W | AC85-265V | ¢190MM | 160MM | 100LM/W | 60/110° | 80Ra/90Ra |
| TPV-DL30WB | 30W | AC85-265V | ¢230MM | 190MM | 100LM/W | 60/110° | 80Ra/90Ra |
